Details

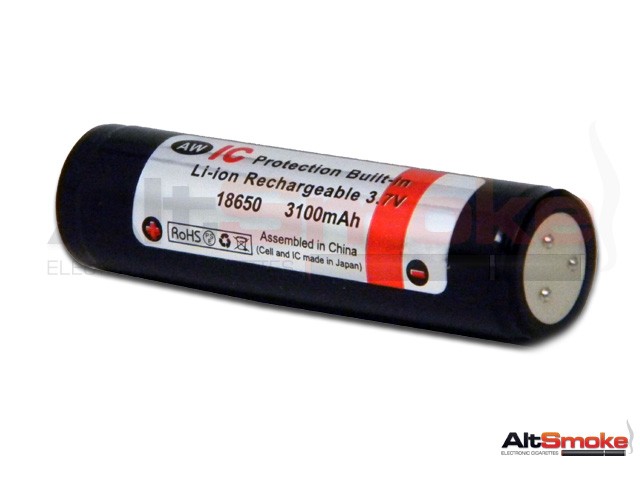

The AW 18650 protected 3100 mAh battery offers cutting edge features along with top quality construction. These are not your standard cheap batteries!
AW 18650 Battery Specifications
Nominal Voltage : 3.6V
Capacity : 3100mAH ( rated at 0.2C discharge 4.2V - 2.5V @ 25℃ )
Operating Temp. : Charge 0 to 45℃ / Discharge -20 to 60 ℃
Recommended Charge Rate : max. 885mA ( 0.3C ) - ambient temp. 25 ℃
Max. Discharge Rate : 6.2A ( ambient temp. 25 ℃ )
Dimensions :18.52 X 68.16mm ( +/- 0.3mm )
The 3100 also features a new ultra thin pcb connecting flexi strip that is heat resistant to 500F ( instead of a bare metal strip ). The new flexi strip will protect the battery from a direct short in case the outer plastic wrapper of the battery is torn / damage. -WARNING.The voltage of full charge and cut-off discharge is 4.2V and 2.75V. Don't heat, indicate or reverse polarity
NOTE: Use special caution when working with Li-ion cells, they are very sensitive to charging characteristics and may explode or burn if mishandled. Make sure the user has enough knowledge of Li-Ion rechargeable batteries in charging, discharging and assembly before use. Always charge in/on a fire-proof surface. Never leave charging batteries unattended. We are not responsible for damage if there is any modification of the batteries/chargers in any form or shape (including pack making). We are not responsible for any damage caused by misuse or mishandling of Li-Ion batteries and chargers. We only recommend using Lithium Ion rechargeable batteries with a control circuit (protection PCB) to assure safe charge, discharge, etc, use of lithium ion batteries without a protection circuit is potentially hazardous
AltSmoke LLC. will not be held responsible or liable for any injury, damage, or defect, permanent or temporary that may be caused by the improper use of a LI-ION battery. Please have a basic understanding of the batteries you are using and how to care for them properly.
AW 18650 Battery Specifications
Nominal Voltage : 3.6V
Capacity : 3100mAH ( rated at 0.2C discharge 4.2V - 2.5V @ 25℃ )
Operating Temp. : Charge 0 to 45℃ / Discharge -20 to 60 ℃
Recommended Charge Rate : max. 885mA ( 0.3C ) - ambient temp. 25 ℃
Max. Discharge Rate : 6.2A ( ambient temp. 25 ℃ )
Dimensions :18.52 X 68.16mm ( +/- 0.3mm )
The 3100 also features a new ultra thin pcb connecting flexi strip that is heat resistant to 500F ( instead of a bare metal strip ). The new flexi strip will protect the battery from a direct short in case the outer plastic wrapper of the battery is torn / damage. -WARNING.The voltage of full charge and cut-off discharge is 4.2V and 2.75V. Don't heat, indicate or reverse polarity
NOTE: Use special caution when working with Li-ion cells, they are very sensitive to charging characteristics and may explode or burn if mishandled. Make sure the user has enough knowledge of Li-Ion rechargeable batteries in charging, discharging and assembly before use. Always charge in/on a fire-proof surface. Never leave charging batteries unattended. We are not responsible for damage if there is any modification of the batteries/chargers in any form or shape (including pack making). We are not responsible for any damage caused by misuse or mishandling of Li-Ion batteries and chargers. We only recommend using Lithium Ion rechargeable batteries with a control circuit (protection PCB) to assure safe charge, discharge, etc, use of lithium ion batteries without a protection circuit is potentially hazardous
AltSmoke LLC. will not be held responsible or liable for any injury, damage, or defect, permanent or temporary that may be caused by the improper use of a LI-ION battery. Please have a basic understanding of the batteries you are using and how to care for them properly.
